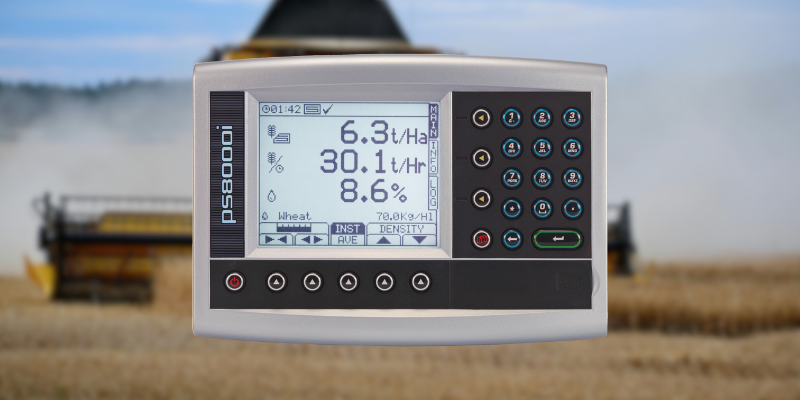

The Ceres 8000i is a quick-reacting and accurate yield monitor. It is specifically designed to work with combine harvesters, optimising efficiency and accuracy in arable farming.
Key Takeaways
- The Ceres 8000i is an onboard weighing system that uses optical sensors and signal processing to provide real-time, accurate measurements of live yield and harvested weight.
- Compatible with all combine harvesters, its benefits include live yield information on one screen, soil-compensated measurements, mapping your yield as you harvest, easy cutting width adjustment, and the ability to save individual crop data.
- The Ceres 8000i comes with a 2-year warranty and is supplied by RDS MME, specialists in vehicle weighing and onboard measurement solutions.
How Does the Ceres 8000i Work?
The Ceres 8000i uses a combination of advanced optical sensing technology and signal processing techniques to provide dynamically accurate measurements, calculating both live yield and dry/wet harvested weight.
Main Benefits of the Ceres 8000i for Arable Farming
There are many advantages to utilising the Ceres 8000i in arable farming settings.
- Suitable for all types of combine harvesters
- Calculates numerous measurements, including yield, forward speed, moisture content, header position, and angle position (2- axis)
- Includes an integral SD card for easy transfer of data to a computer
- Complete and live yield information on one screen, including yield spot rate
- Features a soil tare for calculating precise yield, accounting for soil stuck to crop
- Allows you to see and map your yield as you harvest
- GPS speed input
- Cutting width is easy to adjust
- Tonnage and subtotal area saved for each crop
- Individual area and weight memories for each crop type
- Clear back-lit display for use in all light conditions
- Speed compensation enables straightforward use by numerous drivers
- Can be used to harvest several different crops.
Technical Details of the Ceres 8000i
| Technical Specifications |
| 11 – 30 VDC operating voltage |
| Rubber membrane-sealed switches |
| 160 x 128 pixel (9.5 x 7.5cm) display |
| -30 to +75℃ operating temperature range |
| -40 to +85℃ storage temperature range |
| 2-year warranty |
| Environmental protection: Instrument unit IP67, Full RFI/EMI protection |
Frequently Asked Questions About the Ceres 8000i
What types of combines is the Ceres 8000i compatible with?
The Ceres 8000i is suitable for virtually all types of combine harvesters. It is configurable to suit cereal harvesting and can handle multiple crop types using pre-installed settings.
How does the Ceres 8000i measure yield and moisture?
It uses cutting-edge sensor technology and signal processing techniques to measure yield, forward speed, moisture content, header position, and angle position. Soil tare ensures accurate yield readings even when soil sticks to the crop.
Can the Ceres 8000i help with yield mapping and data transfer?
Yes. The system provides live yield information, allows mapping of yield as you harvest, and includes an integral SD card for easy transfer of data to PCs or farm management software such as FarmWorks or New Holland PFS. GPS speed input can also improve mapping accuracy.
RDS MME provides vehicle weighing solutions and onboard weighing systems to maximise efficiency, accuracy, and profitability. To learn more, please get in touch with our team by phone at 01249 479356 or email us at sales@rdsmme.co.uk.
