Using efficient tools is essential for streamlining operations and optimising performance. The Loadex 100 is a cost-effective and intuitive scale used for accurately weighing materials, such as soil, in civil markets.
Why Use the Loadex 100 in a Civil Market
Onboard weighing systems are invaluable tools for use in civil markets to increase accuracy and maximise productivity. The Loadex 100 is one such solution commonly used in construction and infrastructure projects.
For instance, the Loadex 100 can be utilised on an excavator to load articulated dump trucks (ADTs) to transport soil from one position to another for a new road intersection.
It has been designed to work within the fastest loading environments, enhancing tons per hour performance. Projects in a civil market often run on tight schedules, so investing in an efficient onboard weighing system, such as the Loadex 100, helps avoid delays and consequently extra costs.
Key Features and Benefits of the Loadex 100 in a Civil Market
- GPRS and Wi-Fi connectivity to enable one-way or two-way communication with the back office.
- Split loading capability for truck and trailer.
- Reversing camera input composed of one screen and two functions.
- Grand total and multi-channel summary, so loads can be accumulated for up to 10 attachments.
- Five fast pre-selections for repeating job setups, ideal for multiple active jobs.
- Target load, permitting you to set an individual product target, resulting in precise loading of products or vehicles.
- Innovative dynamic weighing technology using a mechanical sensor and inclinometers, for better weight accuracy and repeatability in challenging terrains and conditions.
- Colour touch-screen for a clear display, supporting user-friendly operation.
- Variable dynamic or static weighing positions according to specific application.
- Numerous job and blend capability with advance memory job search and report function for precise stock management, traceability, and record keeping.
- SQL database functionality and XML data output through serial, ethernet, and USB for safe and productive data handling.
- Internal audible alarm to notify users once overload threshold is reached.
There are also numerous optional system enhancements, including a printer option for hard copies of load information.

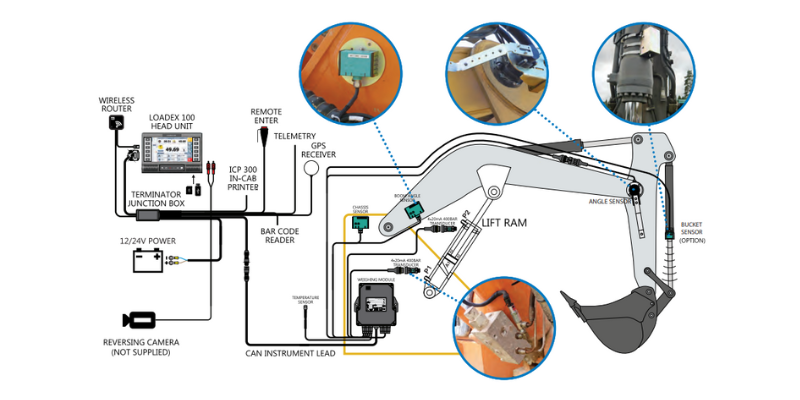

Loadex 100 Technical Specifications
- Two-year parts warranty
- 10 – 30 Vdc operating voltage
- 0 – 400 bar sensor range
- -20 – +70℃ operating temperature range
- System accuracy is generally within +/- 3% of capacity, or better
- Complies with 2004/108/EC ISO 14982
RDS MME provides excavator weighing systems to streamline operations and optimise profitability. Call our team on 01249 479356 or email us at service@rdsmme.co.uk for further information.
